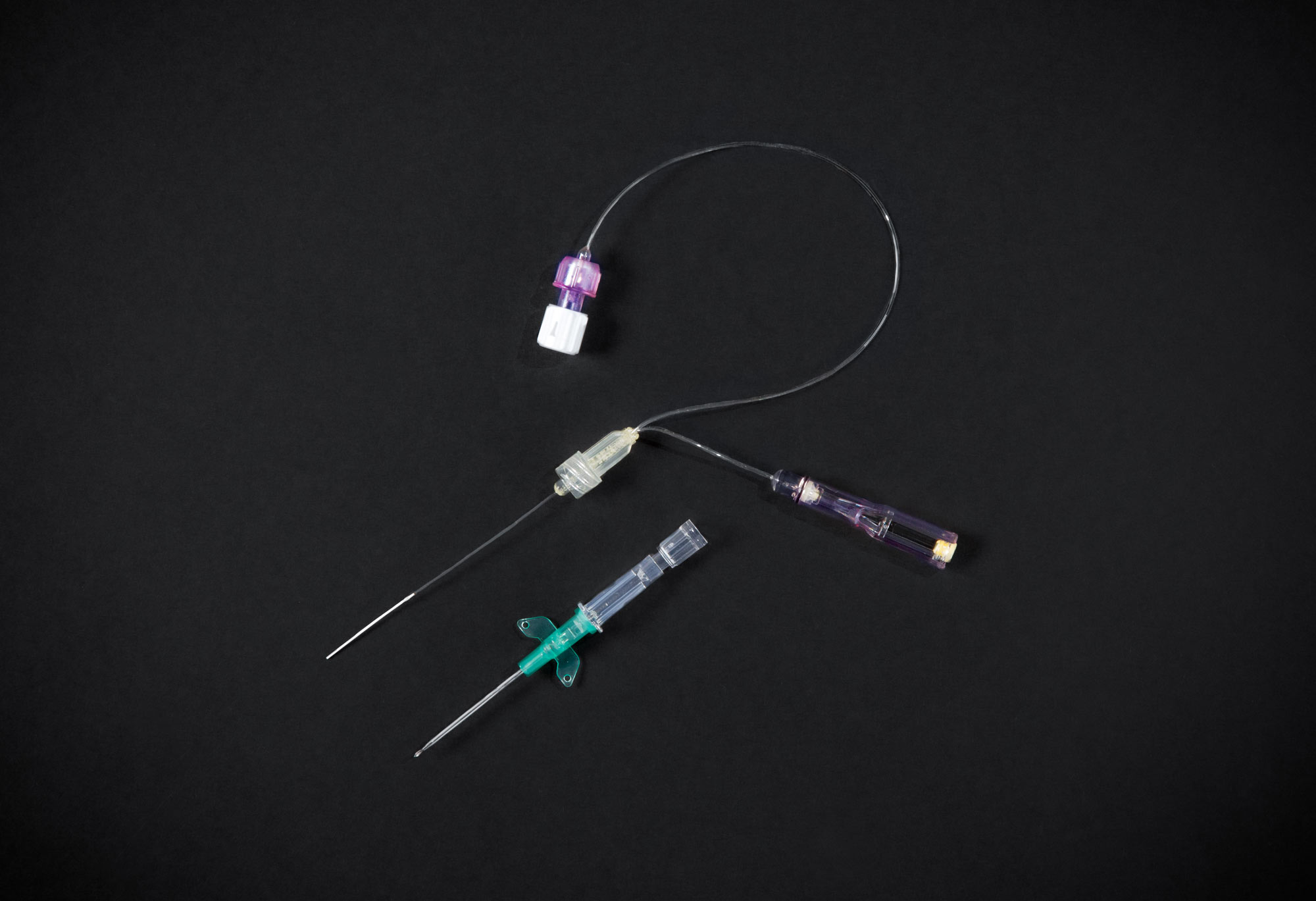

The sterile single use 67 Intravenous Microdialysis Catheter is intended for continuous microdialysis monitoring in the peripheral venous system or in Cerebrospinal Fluid (CSF) e.g. via an External Ventricular Drain (EVD) for up to three days. The 67 IV Microdialysis Catheter allows energy related metabolites, drugs and other small substances to diffuse into the catheter reflecting accurate concentrations in the blood or CSF.

In blood monitoring the 67 IV Microdialysis Catheter is applied simply using a standard peripheral venous catheter and can be used intravenously for up to 72 hours of monitoring. The clean samples and possibility for frequent sampling without discomfort for the patient makes it ideal for clinical research. The catheter is available in 4 different versions of membrane and shaft lengths.In blood monitoring, recovery performance is optimized by using the type with 30 mm membrane at 0.3 μl/min flow rate.

When monitoring in CSF drain the 67 IV Microdialysis cathether is inserted into a Stop cock connector that is attached to the outflowfrom a CSF drain pump e.g. LiquoGuard®

  • For blood or CSF monitoring up to 72 hours

  • Easy insertion by standard PVC

PRODUCT NOTEPRODUCT NOTE

Technical information for 67 IV MD Catheter

Material Length (mm)
8050090
Length (mm)
8050091
Length (mm)
8050092
Length (mm)
8050093
Shaft PAES* 46 46 46 130
Membrane PAES* 10 20 30 10
Inlet Tubing Polyurethane 200 200 200 200
Outlet Tubing Polyurethane 45 45 45 45
PVC Polypropylene, ABS, Chrome-nickel steel, Polyurethane 32 32 32 50
Membrane Cut-off: Approx. 20,000 Daltons

*PAES = Polyarylethersulphone

Ordering information for 67 IV MD Catheter

NOTE: This product may not be approved by your national regulatory authorities. Please contact your local representative for further information.
For USA customers: CAUTION Investigational device. Limited by Federal (or United States) law to investigational use.
Ref. No.
8050090
 67 IV Microdialysis Catheter 46/10, 4/pkg.
8050091 67 IV Microdialysis Catheter 46/20, 4/pkg.
8050092 67 IV Microdialysis Catheter 46/30, 4/pkg.
8050093 67 IV Microdialysis Catheter 130/10, 4/pkg.
Accessories:
P000154 Microvials in Rack Sterile
P000003 106 Microdialysis Pump
P000127 107 Microdialysis Pump
8010191 106 Syringe
Consumables:
P000001
 Microvials
P000028 Microvial Rack
