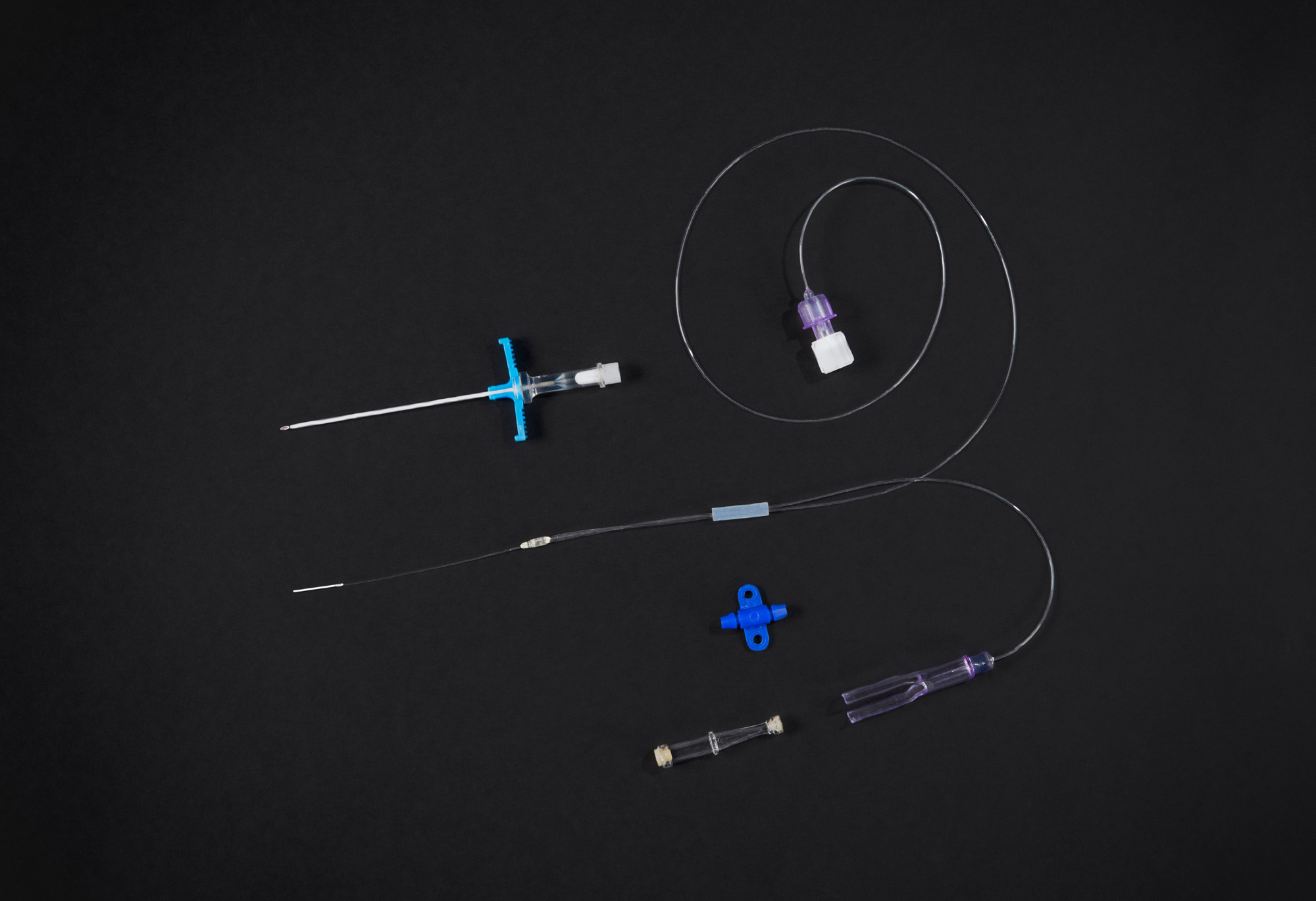

The sterile, single use 63 Microdialysis Catheter is intended for use in Adipose tissue, resting Skeletal Muscle tissue and in Hepatic tissue during open surgery.

It is available in 2 different sizes of membrane and shaft lengths. The catheter is easily introduced into the tissue with a splitable introducer and can be implanted for several days. Fixation devices are included to provide extra security for difficult catheter positions.

The catheter’s inlet tubing is connected to a Microdialysis pump and the outlet tubing ends with a microvial holder where the sample is collected into small microvials. The samples can be analyzed in the ISCUSflex Microdialysis Analyzer for Glucose, Lactate, Pyruvate, Glycerol, Glutamate and Urea or sent to the laboratory for further analysis.

The 63 Microdialysis catheter is suitable for different applications such as monitoring of ischemia in free flaps, metabolic studies in adipose tissue and skeletal muscle tissue especially in obese subjects.

Microdialysis shall not be used as the sole basis for diagnosis or therapy.

Intended purpose

The Peripheral Tissue Microdialysis catheter is intended to enable microdialysis in subcutaneous adipose tissue (63), resting skeletal muscle (63), hepatic tissue (61, 63) or in the intraperitoneal cavity (61).

The 63 Microdialysis Catheter is included in the group of Peripheral Tissue Microdialysis catheters .

  • Suitable for many applications

  • Minimally invasive

  • Splitable Introducer and extra fixation device included

PRODUCT NOTEPRODUCT NOTE

Technical information for 63 MD Catheter

Material Length (mm)
8010509
Length (mm)
8010514
Diameter (mm)
Shaft Polyurethane 60 40 0.9
Membrane PAES * 10 30 0.6
Inlet Tubing Polyurethane 600 600 1.0
Outlet Tubing Polyurethane 220 220 1.0
Membrane Cut-off: Approx. 20,000 Daltons

*PAES = Polyarylethersulphone

Ordering information for 63 MD Catheter

NOTE: This product may not be approved by your national regulatory authorities. Please contact your local representative for further information.
For USA customers: CAUTION Investigational device. Limited by Federal (or United States) law to investigational use.
Ref. No.
8010509
63 Microdialysis Catheter 60/10 incl. Splitable Introducer SI-2 4/pkg
8010514 63 Microdialysis Catheter 40/30 incl. Splitable Introducer SI-2 4/pkg
Accessories:
P000154 Microvials in Rack Sterile
P000003 106 Microdialysis Pump
P000127 107 Microdialysis Pump
8010191 106 Syringe
P000034 Perfusion Fluid T1Consumables:
P000001
 Microvials
P000028 Microvial Rack

All catheters for clinical use
