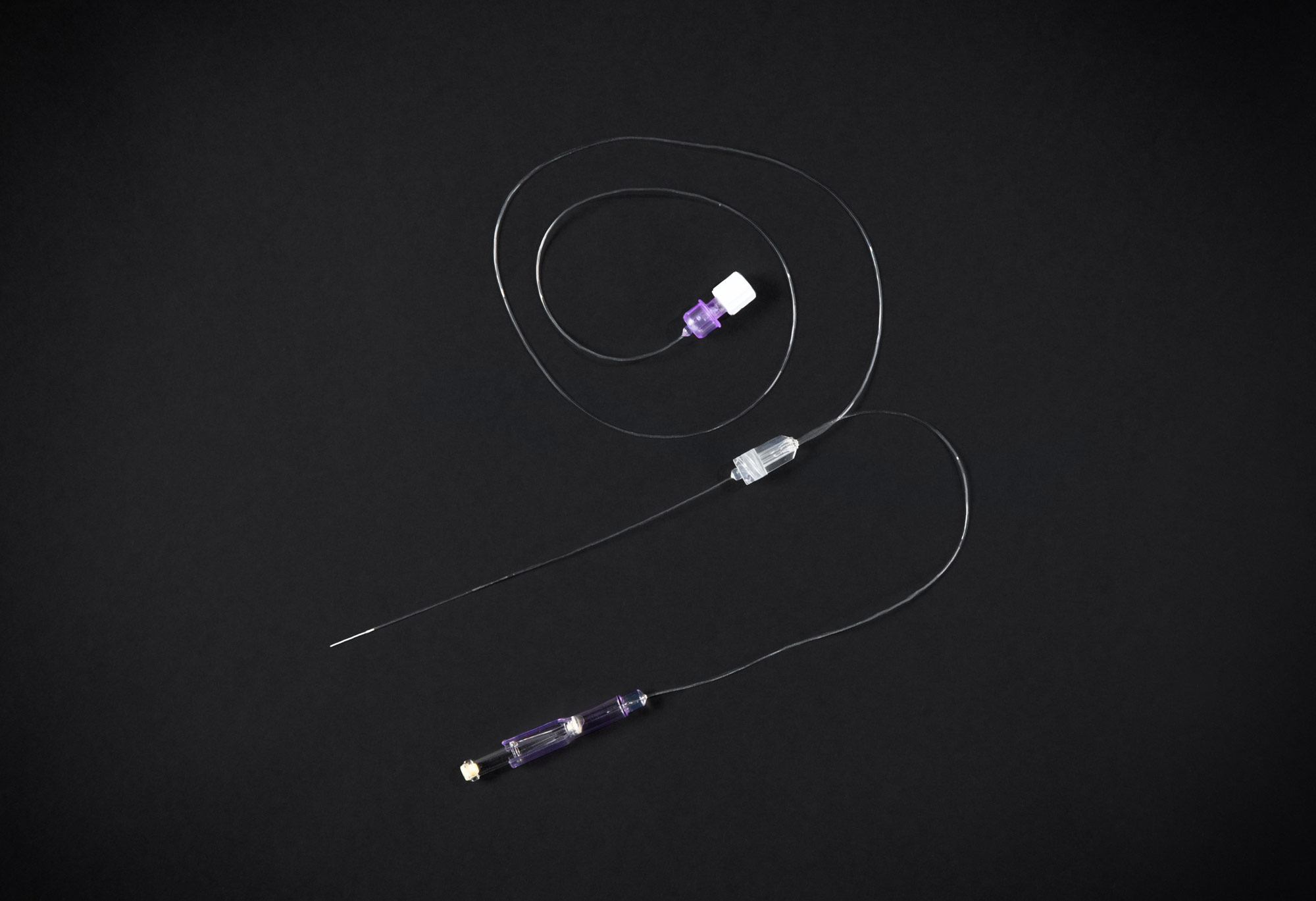

The 70 Microdialysis Bolt Catheter is designed for implantation in brain tissue through the IM2 Bolt kit for 2 brain probes or the IM3 Bolt Kit for 3 brain probes from Integra. The catheter has a 130 mm long shaft and a membrane length of 10 mm. The shaft has a reinforced stainless steel section measuring 16.5 mm in length. This reinforcement is located where the compression screw of the bolt is to be tightened.

The  tip of the Catheter contains a gold tread, which makes it visible on a CT-scan in order to locate the exact position of the catheter in the brain.

The catheter inlet tubing is connected to a 106 Microdialysis Pump and the outlet ends in a microvial which collects the sample. The samples can be analyzed in the Microdialysis Analyzer for Glucose, Lactate, Pyruvate, Glycerol and Glutamate.

  • For bolt implantation

  • “Gold-Tip” visible on CT

  • Reinforced shaft


Technical information for 70 Bolt Catheter

Material Length (mm) Diameter (mm)
Shaft Polyurethane 130 0.9
Membrane Polyarylethersulphone (PAES)   10 0.6
Inlet Tubing ID/OD Polyurethane 600 0.15/1.0
Outlet Tubing ID/OD Polyurethane 220 0.15/1.0

Membrane Cut-off: Approx. 20,000 Dalton

Ordering information for 70 Bolt Catheter

Ordering information for 70 Bolt Catheter
Ref. No.
P000131 70 Microdialysis Bolt Catheter

P000001 Microvials
P000028 Microvial Rack
